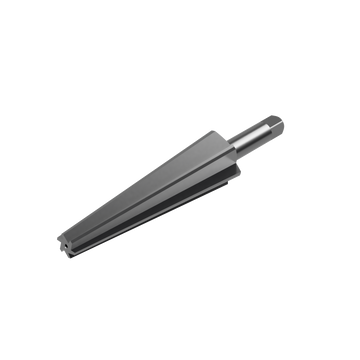

2" TAPER PER FOOT BALL JOINT & TIE ROD REAMER #5904 FORD SUPER DUTY WIDE TRACK / SUPER 60 / FAT BOY FRONT AXLE
ABOUT
Our item #5904 is an oversized 2” taper per foot ball joint and tie rod taper reamer made out of M2 high speed steel. This is a genuine automotive taper at 2” taper per foot, also known as a 9.56 degree included angle. This reamer is manufactured for the Ford Super Duty Wide Track, Super 60, and Fat Boy Front Axle.
SPECIFICATIONS
Over All Length: 6 ½”
Over All Flute Length: 4 ½”
Large End Diameter: 1 5/16”
Small End Diameter: 9/16”
Shank Diameter: ½”
Flute Design: Straight
Flute Count: 6
Material: M2 High Speed Steel
Hardness: 64 Rockwell
USE
This reamer will do production runs and cut material quickly at speeds from 100 to 400 RPM. The use of a full pecking cycle and oil-based coolant is strongly recommended for maximum performance and finish. This reamer can be used by hand with a tap wrench or socket. It can also be used in a drill press or vertical mill with a ½” or larger drill chuck or ½” collet. Keep in mind, this reamer is not a drill. Run this reamer at half the speed (RPM) and twice the feed that you would a drill.
More Information
This M2 high speed 2” taper per foot ball joint and tie rod taper reamer is brand new and manufactured with pride in the U.S.A. by XKUT. We are the manufacturer of this reamer. We offer an in-house $20.00 per reamer re-sharpening service (priority 2-day shipping to customer is included) on all XKUT reamers.
