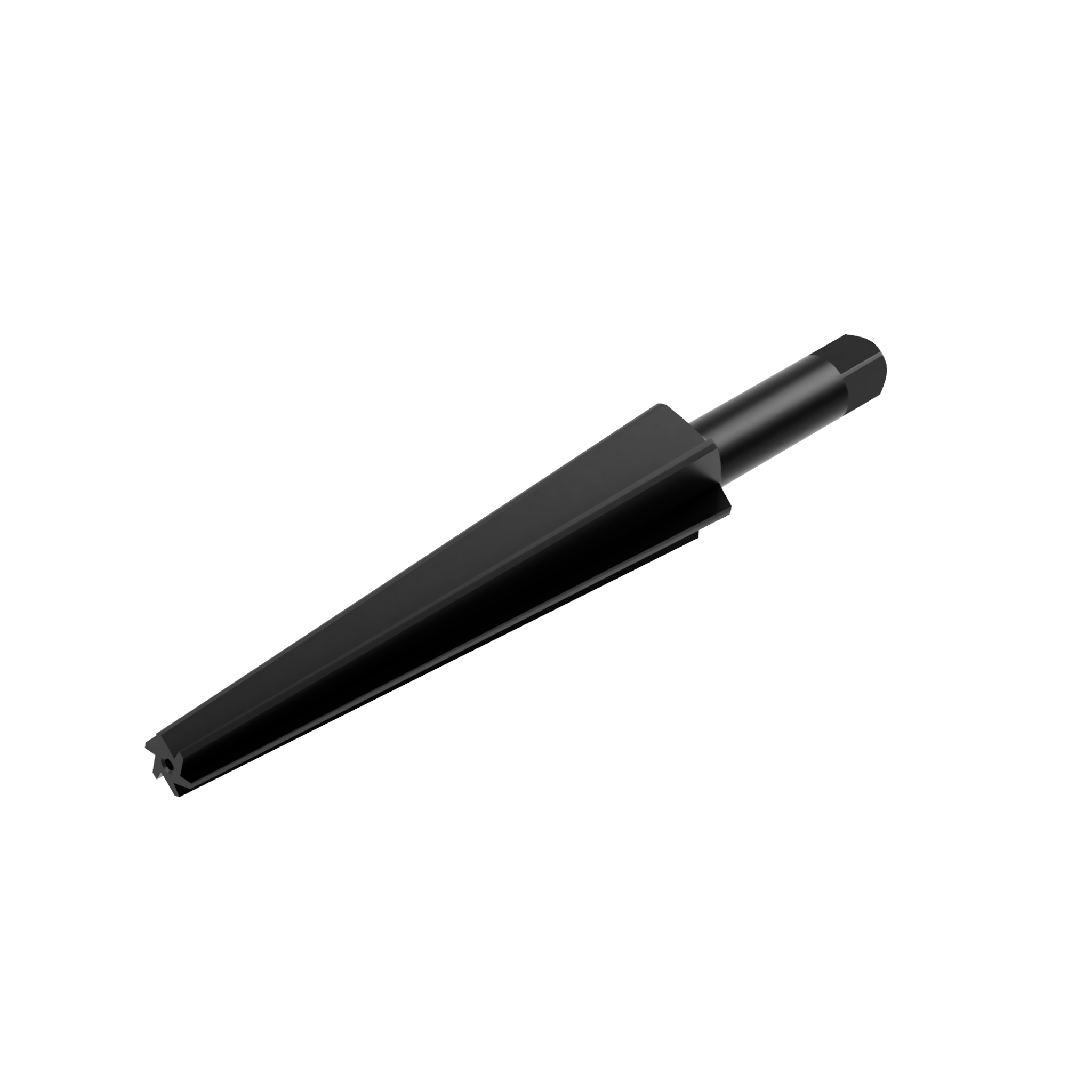

XECUTIONER 1-1/2" TAPER PER FOOT BALL JOINT & TIE ROD TAPER REAMER #1776
ABOUT
The Xecutioner, product #1776, is a 1½” taper per foot ball joint and tie rod taper reamer. It is our cost effective alternative to our popular product #5952. This is a genuine automotive taper at 1½” taper per foot, also known as a 7.15 degree included angle. This reamer is the correct taper for the popular GM Chevy 1 Ton Tre tie rod end and the Heavy Duty Dana 30, 44, and 60 crossover steering applications.
The Xecutioner. Product #1776. A product years in the making. Revolutionizing the future of tapered reamers as we know them. The idea that developed into a plan, executed flawlessly. A product with a mission, vision, and patriotism driven into it.
Xecutioner’s mission. Provide customers with an American made cost alternative reamer without sacrificing XKUT’s pristine quality.
Xecutioner’s vision. Execute the foreign competition of knock off taper reamers for our customers to better the use of true high quality taper reamers at cost effective prices.
Xecutioner’s Patriotism. A product with not only a mission and vision but, a purpose. A purpose to execute foreign competitors to better customers. A product designed by an American company with a backbone. A company with a dream to continue where our forefathers of this great nation left off.
SPECIFICATIONS
Over All Length: 6 ½”
Over All Flute Length: 4 ½”
Large End Diameter: 1”
Small End Diameter: 7/16”
Shank Diameter: ½”
Flute Design: Straight
Flute Count: 6
Hardness: 63-64 Rockwell
X-Series
USE
This reamer will do minor production runs and cut material quickly at speeds from 100 to 400 RPM. The use of a full pecking cycle and oil-based coolant is strongly recommended for maximum performance and finish. This reamer can be used by hand with a tap wrench or socket. It can also be used in a hand drill, drill press, or vertical mill with a ½” or larger drill chuck or ½” collet. Keep in mind, this reamer is not a drill. Run this reamer at half the speed (RPM) and twice the feed that you would a drill.
More Information
This 1½” taper per foot ball joint and tie rod taper reamer is brand new and manufactured with pride in the U.S.A. by XKUT. We are the manufacturer of this reamer. We offer an in-house promotional $10.00 per reamer re-sharpening service (priority 2-day return shipping to customer included) on our X-series reamers.
